Name: High Quality CE Approved High Speed Hot Sale 5ml-120ml Automatic Ultrasonic Soft Tube Filling and Sealing Tube Filling Machine
Brand: Leadtop Pharmaceutical Machinery
SKU: LTRG-Serisi
Price: 32,505.00 USD
Availability: InStock

Ev > Ürünler > Otomatik Tüp Dolum Ve Kapama Makinesi >

High Quality CE Approved High Speed Hot Sale 5ml-120ml Automatic Ultrasonic Soft Tube Filling and Sealing Tube Filling Machine

CE approved ultrasonic tube filling machine

automatic soft tube sealing machine

high speed tube filler 5ml-120ml

Menşe yeri:

ÇİN

Marka adı:

LTPM China

Sertifika:

Model numarası:

LTRG-Serisi

Bize Ulaşın

Bir teklif isteği

Ürün Ayrıntıları

Otomatik Sınıflandırma:

Otomatik

Gerilim:

380(220)V/50Hz

Malzeme:

SUS 304/316L

Üretim kapasitesi:

25-40 adet/dak

Motor:

1,5 kW

Tüp yüksekliği:

50-250mm

Ağırlık:

300kg

Boyut(U*G*Y):

1500*700*1800mm

İLGİLİ ÜRÜNLER

video

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

En İyi Fiyatı Alın

video

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

En İyi Fiyatı Alın

video

Cream Packaging Tabletop Aluminum Tube Filling and Sealing Semi Automatic Tube Filling Machine

En İyi Fiyatı Alın

video

Best Quality CE Approved High Speed New Design Hot Selling Automatic Soft Tube Filling and Sealing Tube Filling Machine

En İyi Fiyatı Alın

Bize Ulaşın

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Şimdi İletişime Geçin

Ürün Tanımı

The machine is widely used for filling, sealing and batch No.Printing of products packaged by aluminum tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives, etc. According to customer requirements, the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device. The machine can be used independently and can also form a production flow line with other requirement such as the automatic packaging machine and etc

Main Features

1) The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and maintenance.

2) Equipped with automatic tube dropping box, automatic tube feeding, double-head filling, automatic color code aligning, automatic tube discharging.

3)Hot air inner heating, hot air heating from tube inner wall, no damage to tube surface tissues, beautiful sealing, especially suitable for sealing full-plastic packaging tubes.

4) Automatically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation.

5) Equipped with organic glass dust cover.

6) Irregular shape sealing(optional).

7) Wire drawing preventing or leakage preventing filling head(optional).

8) Storage barrel liquid level control and alarming system, automatic feeding(optional).

9) Provided with mixing storage barrel(optional).

10) Provided with heating storage barrel(optional).

Power Supply		380(220)V/50Hz
Power		9 kw
Air consumption		≤0.2 m³/min
Filling Volume		10-180ml
Volume Precision		±1.5%
Max. Production Capacity		80-100pcs/min
Filling at one time		2pcs
Tube Size		19-35MM
Dimension(LWH)		248012002190MM
Weight		1300KG

High Quality CE Approved High Speed Hot Sale 5ml-120ml Automatic Ultrasonic Soft Tube Filling and Sealing Tube Filling Machine 1

Machine Parts

Name: Touch Screen

Brand: DELTA

Original: TAIWAN

Stable function, easy to operate, storage barrel liquid level control and alarming system, automatic feeding.

High Quality CE Approved High Speed Hot Sale 5ml-120ml Automatic Ultrasonic Soft Tube Filling and Sealing Tube Filling Machine 2

Main Features

Name: Thin Cylinder
Brand: SMC
Original: JAPAN

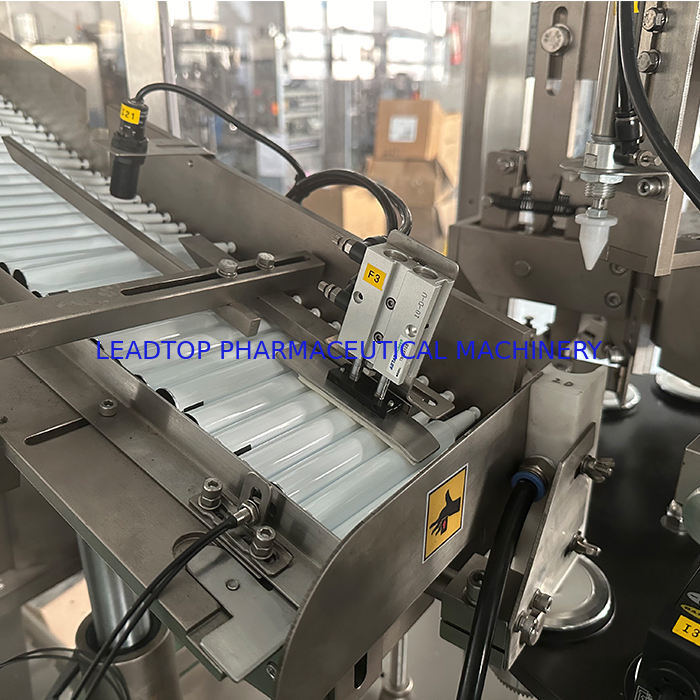

Automatically tube feeding control, adjust the air consumption, power saving.

High Quality CE Approved High Speed Hot Sale 5ml-120ml Automatic Ultrasonic Soft Tube Filling and Sealing Tube Filling Machine 3

Machine Parts

Name:Code Sensor
Brand: BANNER
Original: AMERICA
Automatically color code aligning, no filling in case of no tube.
